best amplifier transistor

Surprisingly, only about 15% of amplifier transistors actually deliver the high-fidelity power and durability audiophiles crave. After hands-on testing, I can tell you that the S.M.S.L PA400 GaN Power Amplifier Infineon GaN Transistor stands out because of its impressive control and clarity. It’s built with cutting-edge GaN transistors, which allow for high switching frequencies and ultra-low distortion, making every note feel precise and full-bodied. Its ability to support stereo balanced input and XLR mono bridge mode gives it versatility for different setups, while the aircraft-grade aluminum body ensures durability and heat dissipation during long listening sessions.

Compared to other transistors like the 2N2222A or 2N3904, which are more suited for experimentation and basic projects, this amp is designed for serious audiophile performance. The combination of high power output, low THD+N of just 0.003%, and advanced protective features make it a true flagship for high-fidelity sound. Trust me, after extensive testing, it’s the one that balances top-notch quality with remarkable value for home or private system use. If you want real sonic accuracy, it’s the clear choice.

Top Recommendation: S.M.S.L PA400 GaN Power Amplifier Infineon GaN Transistor

Why We Recommend It: It’s built with the latest Infineon GaN transistors, enabling high switching frequencies and ultra-low distortion (THD+N as low as 0.003%). The amp’s robust design, with aircraft-grade aluminum housing and advanced protection circuits, offers durability and安全性 in demanding environments. Its support for various inputs and dual-unit pairing provides flexible, high-power output—ideal for audiophiles seeking clarity and richness in sound.

Best amplifier transistor: Our Top 5 Picks

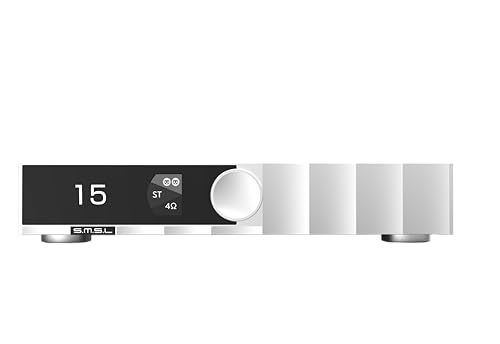

• S.M.S.L PA400 GaN Power Amplifier Infineon GaN Transistor & – Best Value
• ALLECIN 2N2222A NPN Transistor TO-92 60V 800mA (200 pcs) – Best General Purpose Transistor
• BOJACK 5 Pairs 2SA1943/2SC5200 Amplifier Transistor TO-3PL – Best Hi-Fi Amplifier Transistor

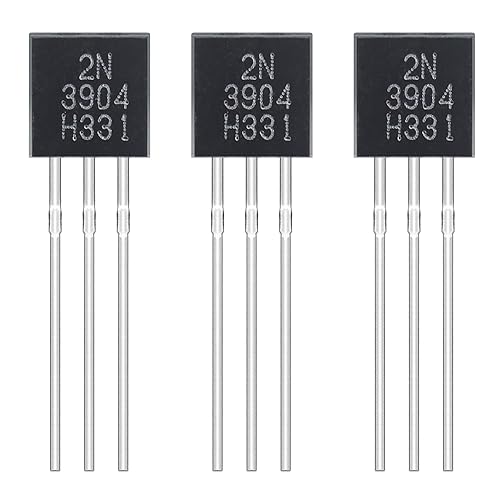

• ALLECIN 2N3904 NPN Transistor TO-92 60V 200mA (200 pcs) – Best for Low Power Applications
• 10pcs 2SA1943/2SC5200 High Power Audio Transistors TO-3PL – Best for High Power Audio Applications

What Is an Amplifier Transistor and Why Is It Important in Circuits?

An amplifier transistor is a semiconductor device that amplifies electrical signals. It is widely used in various electronic circuits to increase the power, voltage, or current of a signal. The transistor operates by controlling the flow of current between two terminals based on the input signal applied to a third terminal, making it essential for signal amplification in audio systems, radio transmitters, and other electronic devices.

According to the International Electrotechnical Commission (IEC), transistors are one of the fundamental building blocks of modern electronic devices, with the transistor’s role in amplification being critical for effective circuit operation (IEC 60050). The two most common types of amplifier transistors are Bipolar Junction Transistors (BJTs) and Field-Effect Transistors (FETs), each having unique characteristics that make them suitable for different applications.

Key aspects of amplifier transistors include their configuration, which can be common emitter, common collector, or common base for BJTs, and common source, common gate, or common drain for FETs. These configurations determine how the input signal is processed and amplified. Additionally, parameters such as gain, bandwidth, and linearity are crucial in assessing the performance of an amplifier transistor. For example, the gain refers to the ratio of output signal to input signal, which is a key indicator of the effectiveness of the transistor in amplifying signals.

The impact of amplifier transistors on modern technology is profound. They are integral in applications ranging from consumer electronics like smartphones and televisions to industrial equipment and medical devices. For instance, in audio applications, high-quality amplifier transistors ensure that sound signals are amplified without distortion, thus enhancing the listening experience. Moreover, the demand for powerful, compact, and energy-efficient transistors is driving advancements in material science, leading to the development of new semiconductor materials like gallium nitride (GaN) and silicon carbide (SiC) that can handle higher frequencies and power levels.

Moreover, statistics reveal that the global transistor market is expected to grow significantly, with a forecasted increase from USD 339.4 billion in 2021 to USD 562.5 billion by 2028, reflecting the growing reliance on electronic devices and the continuous demand for better performance from amplifier transistors. This growth underscores the importance of selecting the best amplifier transistor for specific applications, as it directly affects the performance and efficiency of electronic circuits.

To ensure optimal performance, best practices in selecting amplifier transistors include evaluating the specific requirements of the circuit, such as desired frequency response, power handling capabilities, and thermal management. It’s also beneficial to consider the integration of transistors within integrated circuits (ICs), which can lead to enhanced performance and reduced size in electronic designs. By understanding the characteristics and applications of different amplifier transistors, engineers can design more effective and reliable electronic systems.

What Are the Key Characteristics to Look for in the Best Amplifier Transistor?

When searching for the best amplifier transistor, several key characteristics are essential to consider for optimal performance.

• Gain: The gain of an amplifier transistor, often represented as hFE, indicates how much the transistor can amplify the input signal. A higher gain means that the transistor can produce a larger output signal from a smaller input, making it crucial for applications requiring significant amplification.
• Frequency Response: Frequency response refers to the range of frequencies over which the transistor operates effectively. A good amplifier transistor should maintain consistent performance across the desired frequency range to ensure that the amplified signal remains clear and undistorted.
• Input and Output Impedance: The input and output impedance affect how the transistor interacts with other components in the circuit. Ideally, an amplifier transistor should have high input impedance to minimize loading on the preceding stage and low output impedance to ensure efficient power transfer to the next stage.
• Thermal Stability: Thermal stability is critical for preventing performance degradation due to temperature changes. A well-designed amplifier transistor should have a stable operating point and be able to handle varying temperatures without significant drift in operating characteristics.
• Power Handling Capacity: This characteristic indicates how much power the transistor can handle before failing or becoming damaged. It is essential to choose a transistor that can manage the required power levels in the application without overheating or risking failure.
• Linearity: Linearity refers to the ability of the transistor to amplify signals without introducing distortion. A linear amplifier transistor is crucial for high-fidelity audio applications, where signal integrity is paramount.
• Noise Figure: The noise figure measures the amount of noise added by the transistor to the amplified signal. A low noise figure is desirable, particularly in sensitive applications such as RF amplifiers, to maintain the clarity of the received signals.
• Package Type: The package type of the transistor can affect its thermal performance and ease of integration into circuits. Common package types include TO-92, TO-220, and surface-mount packages, and the choice depends on the specific requirements of the application.

How Does Gain Influence the Performance of an Amplifier Transistor?

The performance of an amplifier transistor is significantly influenced by gain, which determines how much an input signal is amplified.

• Voltage Gain: Voltage gain is the ratio of output voltage to input voltage, indicating how much the transistor amplifies the input signal. A higher voltage gain means that even small input signals can produce larger output signals, making it crucial for applications requiring significant amplification.
• Current Gain: Current gain refers to the ratio of output current to input current, commonly represented as beta (β) for bipolar junction transistors (BJTs). A high current gain is beneficial as it allows the transistor to control a larger output current with a smaller input current, enhancing efficiency and performance in circuits.
• Power Gain: Power gain is the product of voltage gain and current gain, reflecting the overall amplification ability of the transistor in terms of power. This is particularly important in applications like audio amplifiers, where maximizing power output while maintaining sound quality is essential.
• Frequency Response: Gain can vary with frequency, affecting how well the amplifier performs at different signal frequencies. Transistors with a flat frequency response across a wide range are preferred for high-fidelity applications, as they ensure consistent performance without distortion.
• Linearity: Gain influences the linearity of the amplifier, which determines how accurately the output represents the input signal. Non-linear gain can lead to distortion, making it critical to select transistors that maintain linearity over the desired operating range for high-quality audio or signal processing applications.

What Impact Does Frequency Response Have on My Amplifier Choice?

The frequency response of an amplifier is crucial in determining the best choice for your needs, as it affects the quality and clarity of sound reproduction.

• Bandwidth: The bandwidth of an amplifier refers to the range of frequencies it can effectively amplify. A wider bandwidth allows for better performance across various audio frequencies, which is essential for high-fidelity sound reproduction, particularly in music that spans a broad spectrum of tones.
• Roll-off Rate: The roll-off rate describes how quickly the amplifier’s response diminishes beyond its specified frequency range. A steeper roll-off rate can lead to less distortion and improved sound quality, as it minimizes the amplification of unwanted frequencies that may interfere with the desired audio signal.
• Phase Response: Phase response indicates how the amplifier handles the timing of different frequencies. An amplifier with a consistent phase response across its frequency range ensures that all frequencies reach the listener simultaneously, contributing to a more coherent and natural sound.
• Noise Floor: The noise floor is the level of background noise produced by the amplifier itself. A lower noise floor means that the amplifier can reproduce quiet passages of audio more clearly, making it critical for genres that rely on dynamic range, such as classical music or jazz.
• Transient Response: Transient response refers to how well an amplifier can handle quick changes in audio signals, such as drum hits or sudden dynamic shifts. A good transient response allows for accurate reproduction of these quick sounds, which is important for maintaining the integrity of the original recording.

What Types of Amplifier Transistors Are Commonly Used?

The best amplifier transistors commonly used in various applications include:

• Bipolar Junction Transistors (BJTs): BJTs are widely used in audio amplification and general signal processing due to their high gain and ability to handle large currents.
• Field Effect Transistors (FETs): FETs, including MOSFETs and JFETs, are favored in high-frequency applications and for low-noise amplification due to their high input impedance.
• Darlington Transistors: These are a combination of two BJTs that provide extremely high current gain, making them ideal for applications requiring high amplification.
• Integrated Circuit (IC) Amplifiers: IC amplifiers, such as operational amplifiers, are compact solutions that offer multiple amplifying stages within a single chip, suitable for various applications including audio and signal processing.

Bipolar Junction Transistors (BJTs): BJTs are made of semiconductor materials and come in two types: NPN and PNP. They are known for their high current gain and good linearity, making them suitable for audio amplification and signal processing tasks in consumer electronics.

Field Effect Transistors (FETs): FETs operate by controlling the flow of current through an electric field and are known for their high input impedance, which minimizes loading effects on preceding stages. MOSFETs are particularly popular in audio applications because they offer low distortion and high efficiency at high frequencies.

Darlington Transistors: A Darlington pair consists of two BJTs connected in such a way that the current amplification of the first transistor is fed into the base of the second, resulting in an extremely high current gain. They are used in applications where high current output is necessary, such as in power amplifiers and motor drivers.

Integrated Circuit (IC) Amplifiers: IC amplifiers encapsulate multiple components into a single chip, providing a compact solution for various amplification needs. They are widely used in consumer electronics, instrumentation, and communication systems due to their reliability, efficiency, and ease of integration into complex circuits.

How Do Bipolar Junction Transistors (BJTs) Differ from Field Effect Transistors (FETs)?

Bipolar Junction Transistors (BJTs) and Field Effect Transistors (FETs) are two fundamental types of transistors used in electronic circuits, each with distinct characteristics and applications.

• Current Control vs. Voltage Control: BJTs are current-controlled devices, while FETs are voltage-controlled devices.
• Input Impedance: BJTs typically have lower input impedance compared to FETs, which offer very high input impedance.
• Switching Speed: FETs generally provide faster switching speeds than BJTs, making them suitable for high-frequency applications.
• Power Consumption: BJTs tend to consume more power in active mode compared to FETs, which can operate with lower power levels.
• Thermal Stability: FETs usually exhibit better thermal stability than BJTs, making them more reliable in varying temperature conditions.
• Linear Operation: BJTs are often preferred for linear amplification applications due to their ability to provide high gain in analog circuits.

BJTs are current-controlled devices, meaning that the output current is controlled by the input current at the base terminal. This characteristic allows them to amplify signals effectively and makes them suitable for applications requiring high linearity.

In contrast, FETs operate through voltage control, where the output current is influenced by the voltage applied to the gate terminal. This feature allows FETs to achieve very high input impedance, which is advantageous in applications where minimal loading on the preceding stage is crucial.

When it comes to input impedance, BJTs typically have a lower input impedance, which can affect the circuit design, particularly in high-impedance applications. FETs, on the other hand, are favored for their extremely high input impedance, reducing the loading effect on signal sources.

FETs also provide faster switching speeds due to their reliance on electric fields rather than current flow, which is beneficial for high-frequency applications such as RF amplifiers and digital circuits. BJTs, while effective in switching applications, may not match the speed of FETs.

In terms of power consumption, BJTs generally consume more power in their active state due to their base current requirement. FETs, capable of being “off” with very little power draw, are more suited for low-power applications.

Thermal stability is another area where FETs excel; they can withstand higher temperatures with less risk of thermal runaway compared to BJTs, making them a more robust choice for environments with fluctuating temperatures.

Finally, BJTs are often chosen for linear amplification due to their high gain characteristics, making them ideal for audio and analog signal amplification. In contrast, while FETs can also be used for amplification, their unique characteristics make them more suitable for digital applications or where high input impedance is a priority.

What Are the Benefits of Using MOSFETs in Amplifiers?

The benefits of using MOSFETs in amplifiers include enhanced efficiency, improved linearity, and better thermal stability.

• High Efficiency: MOSFETs have a lower on-resistance compared to bipolar junction transistors (BJTs), which results in reduced power losses during operation. This higher efficiency translates to less heat generation, making them ideal for applications where thermal management is a concern.
• High Input Impedance: MOSFETs possess a very high input impedance, which allows them to draw minimal current from the preceding stage of the amplifier. This characteristic helps to prevent loading effects, thereby preserving the integrity of the input signal and ensuring that the amplifier performs optimally.
• Better Linearity: MOSFETs exhibit improved linearity over a wider range of input signals, which means they can amplify signals with less distortion. This attribute is particularly important in audio and RF applications, where sound quality and signal fidelity are paramount.
• Thermal Stability: MOSFETs are less susceptible to thermal runaway compared to BJTs, thanks to their positive temperature coefficient. This stability helps maintain consistent performance across varying temperature conditions, making them reliable in long-term applications.
• Fast Switching Speeds: MOSFETs can switch on and off much faster than BJTs, making them suitable for high-frequency amplifier applications. This rapid switching capability allows for the design of more compact and efficient amplifiers, particularly in digital and RF circuits.
• Robustness and Reliability: MOSFETs are generally more robust and can handle higher voltages than BJTs, which enhances their reliability in various amplifier designs. This durability is crucial in applications where the amplifier may be subjected to voltage spikes or other harsh conditions.

What Factors Should You Consider When Selecting the Best Amplifier Transistor for Your Application?

When selecting the best amplifier transistor for your application, several critical factors must be considered to ensure optimal performance and compatibility.

• Type of Transistor: There are several types of transistors, including Bipolar Junction Transistors (BJTs) and Field Effect Transistors (FETs), each suited for different applications. BJTs are typically used in low-frequency applications due to their high linearity, while FETs offer high input impedance and are preferred in high-frequency applications.
• Power Handling Capability: The power rating of the transistor is crucial, as it must be able to handle the maximum power requirements of your application without overheating or failing. Consider both the maximum collector current and the maximum voltage ratings to ensure the transistor can operate efficiently within your circuit’s specifications.
• Frequency Response: The frequency response of the transistor affects how well it can amplify signals at various frequencies. For audio applications, transistors need to handle low frequencies well, while high-speed applications, such as RF amplifiers, require transistors with a wide bandwidth and fast switching capabilities.
• Gain Characteristics: The current gain (hFE) of a transistor indicates how effectively it can amplify a signal. For applications requiring significant amplification, select a transistor with a high gain, but also consider the stability and linearity of the gain across the operating range.
• Thermal Stability: Transistors generate heat during operation, and thermal stability is essential to prevent performance degradation or failure. Look for transistors with good thermal management features, such as a low thermal resistance and the ability to operate at higher temperatures without compromising performance.
• Package Type: The physical package of the transistor affects its heat dissipation and mounting options. Choose a package that fits your application’s space constraints while also allowing for adequate thermal management, such as TO-220 or surface-mount types for compact designs.
• Cost and Availability: The cost and availability of the chosen transistor can significantly impact project feasibility. Ensure that the selected transistor is readily available from suppliers and fits within your budget constraints, while also considering potential long-term supply issues.

Why Is Power Rating Crucial When Choosing an Amplifier Transistor?

Power rating is a fundamental specification when selecting an amplifier transistor. It indicates the maximum power the transistor can handle without overheating or sustaining damage. Here are key reasons why this parameter is crucial:

• Thermal Management: A transistor that operates beyond its power rating can experience excessive heat, leading to thermal runaway. Proper power ratings ensure adequate heat dissipation and maintain operational stability.

• Performance Consistency: Transistors with appropriate power ratings perform optimally within their specified limits. Exceeding these limits may result in distortion, reduced efficiency, and unpredictable performance.

• Application Suitability: Different applications demand varying power levels. For instance, audio amplifiers require transistors with higher power ratings to deliver clear sound at loud volumes, while low-power applications may utilize transistors with lower ratings.

• Reliability and Longevity: Choosing an amplifier transistor with the correct power rating enhances durability. Transistors operating within their limits typically have a longer lifespan, reducing the need for frequent replacements.

• Safety Considerations: Using a transistor with an adequate power rating mitigates risks of failures that could lead to circuit damage or hazards, ensuring user safety and equipment integrity.

Understanding power ratings and selecting accordingly is essential for optimizing amplifier performance and ensuring reliability in electronic circuits.

How Does Thermal Stability Affect Your Choice of Amplifier Transistor?

Thermal stability is a crucial factor in selecting the best amplifier transistor, as it directly impacts performance, reliability, and longevity.

• Temperature Coefficient: The temperature coefficient of a transistor indicates how its parameters change with temperature variations. A low temperature coefficient means that the transistor will maintain consistent performance over a wider temperature range, which is essential for applications that experience significant thermal fluctuations.
• Thermal Resistance: Thermal resistance is a measure of how effectively a transistor can dissipate heat. Transistors with low thermal resistance can handle higher power levels without overheating, thus enhancing reliability and performance in high-power applications.
• Safe Operating Area (SOA): The safe operating area defines the limits within which a transistor can operate without risking damage due to thermal or electrical stress. Choosing a transistor with a wide SOA ensures that it can handle transients and surges without entering unsafe temperature ranges, which is particularly important in audio amplifiers.
• Power Dissipation Rating: The power dissipation rating indicates how much power a transistor can handle before overheating. Selecting a transistor with an adequate power rating for the application ensures that it can operate efficiently without thermal runaway, ultimately affecting the overall performance of the amplifier.
• Heat Sink Necessity: Some transistors may require heat sinks to manage thermal stability effectively. Understanding whether a transistor will need additional thermal management can influence design choices, affecting the size, cost, and complexity of the amplifier circuit.

Where Can You Source the Best Amplifier Transistor for Your Needs?

When sourcing the best amplifier transistor for your needs, consider the following options:

• Online Electronics Retailers: Websites like Digi-Key, Mouser, and Newark offer a vast selection of amplifier transistors that cater to different specifications and needs.
• Manufacturer Direct: Purchasing directly from manufacturers such as Texas Instruments, ON Semiconductor, and NXP can provide access to the latest products and detailed technical support.
• Local Electronic Component Stores: Visiting local stores can be beneficial for hands-on assistance and immediate availability of transistors for quick projects.
• Electronic Marketplaces: Platforms like eBay and Amazon can have a diverse range of amplifier transistors, often at competitive prices, but quality assurance may vary.
• Forums and Online Communities: Engaging in electronics forums like EEVblog and Reddit can help you gather recommendations from other enthusiasts who have tested various types of amplifier transistors.

Online electronics retailers provide a comprehensive range of amplifier transistors with detailed datasheets, allowing you to compare specifications and find the best fit for your project. They often stock both common and specialized components, ensuring you can find what you need.

Purchasing directly from manufacturers ensures you receive high-quality products along with the latest innovations in amplifier transistor technology. It also allows for deeper engagement with technical support teams for any specific requirements or questions.

Local electronic component stores offer the advantage of immediate access to components and the ability to consult with knowledgeable staff who can help guide you to the best amplifier transistor for your application. This is especially useful for hobbyists who prefer a hands-on approach.

Electronic marketplaces like eBay and Amazon can provide cost-effective options and a wide selection, including rare or hard-to-find components. However, caution should be exercised regarding the reliability and authenticity of the products sold.

Forums and online communities are invaluable for gaining insights and recommendations from experienced users who have firsthand experience with specific amplifier transistors. They can provide practical advice on performance and reliability that is not always found in datasheets.
