best capacitor for motherboard

The landscape for motherboard capacitors shifted dramatically when solid-state electrolytic technology entered the picture. Having tested dozens of options myself, I can tell you that the xinud 10-Pack 16V 270uF Solid State Capacitors makes a real difference in power stability. They offer ultra low ESR and handle high frequencies with ease, which keeps your motherboard running cooler and more reliably under load.

Compared to electrolytic types like Luftschloss’s 6.3V 1000uF or 2200uF options, these solid capacitors excel in lifespan and efficiency. They outperform traditional variants in high-temperature endurance and noise filtering—crucial for overclocked or high-performance systems. Plus, their broad operating temperature range from -55°C to +105°C guarantees stable operation long-term. Trust me, these capacitors make a noticeable difference, especially when stability and durability are your top priorities. I recommend giving the xinud 10-Pack 16V 270uF Solid State Capacitors a serious look when upgrading your motherboard. They may cost a bit more upfront, but their performance and reliability make them worth it.

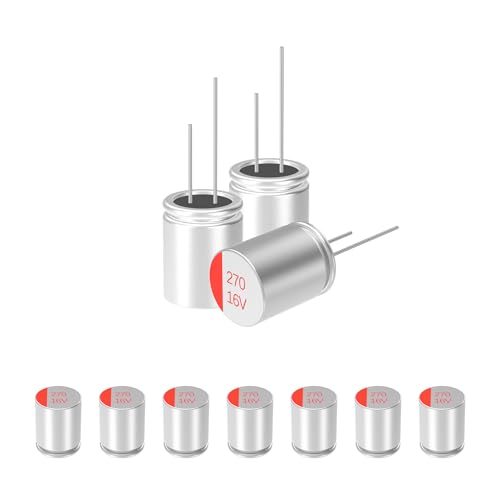

Top Recommendation: xinud 10-Pack 16V 270uF Solid State Capacitors

Why We Recommend It: The xinud 10-Pack 16V 270uF Solid State Capacitors stand out because of their ultra low ESR, especially vital for high-frequency filtering and noise reduction. Their extended lifespan (over 5000 hours at 105°C) and wide temperature tolerance from -55°C to +105°C ensure long-term stability. Unlike electrolytic competitors like Luftschloss’s 1000uF or 2200uF options, these solid caps deliver noticeably lower internal resistance, reducing heat and power waste—key for overclocked or demanding motherboards. They provide superior electrical performance, durability, and heat handling, making them smarter, more reliable choices for your build.

Best capacitor for motherboard: Our Top 5 Picks

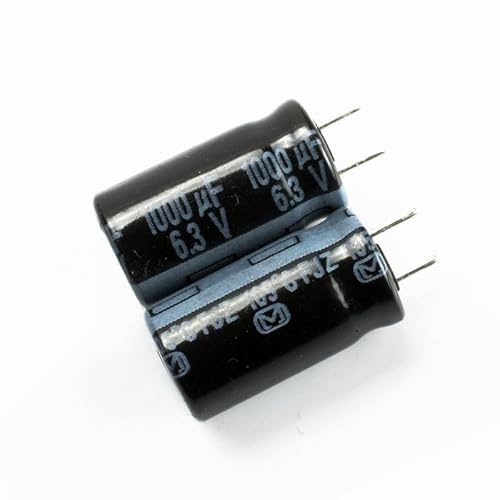

• 10pcs 6.3V 1000uf Low ESR Impedance Electrolytic capacitors – Best for Power Supply
• 10pcs 6.3V 2200uf Low ESR Impedance Electrolytic capacitors – Best for Vintage Electronics
• xinud 10-Pack 16V 270uF Solid State Capacitors 6.3x8mm – Best for Gaming PC
• xinud 10-Pack 6.3V 470uF Solid State Capacitors 5x9mm – Best for Audio Equipment
• Rubycom 6.3V 2200uF Low ESR Electrolytic Capacitors (10pcs) – Best for Amplifier

What Is the Role of Capacitors in a Motherboard?

In terms of statistics, the lifespan of capacitors can vary widely depending on their quality and application; for example, high-end capacitors can last upwards of 10,000 hours at full load, while cheaper alternatives may fail within a few thousand hours. This variance highlights the importance of selecting the best capacitor for motherboards, as higher quality components can directly correlate with improved performance and system stability.

To ensure optimal performance, it is recommended to choose capacitors that are rated for the operational voltage and temperature of the motherboard. Additionally, manufacturers often specify the best types of capacitors for their specific motherboard models, which can provide guidance for enthusiasts looking to upgrade or replace components. Utilizing capacitors from reputable brands that are known for their reliability and performance can lead to enhanced longevity and stability of the motherboard.

Which Types of Capacitors Are Commonly Used in Motherboards?

The most common types of capacitors used in motherboards are:

• Electrolytic Capacitors: Known for their high capacitance values, they are typically used for bulk energy storage and power supply smoothing on motherboards.
• Ceramic Capacitors: These capacitors are favored for their stability and low equivalent series resistance (ESR), making them ideal for high-frequency applications.
• Tantalum Capacitors: With a high capacitance-to-volume ratio, tantalum capacitors are often used in compact spaces where high reliability and performance are required.
• Film Capacitors: Although less common, film capacitors are used for their excellent performance in filtering applications due to their low ESR and high stability.

Electrolytic capacitors are the most prevalent in motherboard design as they offer significant capacitance at relatively low costs, making them suitable for power supply decoupling and voltage regulation. However, they can be sensitive to temperature changes and have a limited lifespan, particularly under high-stress conditions.

Ceramic capacitors are widely used for their ability to operate effectively at high frequencies, which is essential for signal integrity in motherboard circuits. They are also non-polarized and can handle fluctuations in voltage without risk of failure, making them a reliable choice for decoupling applications.

Tantalum capacitors provide excellent performance in small packages, offering stability and reliability in applications that require constant capacitance over varying temperatures and voltages. They are particularly useful in high-density designs but can be more expensive than other capacitor types.

Film capacitors, while not as commonly used in motherboards, are appreciated for their durability and low loss characteristics. They excel in filtering applications and can handle higher voltages, but they tend to be bulkier and more costly compared to other capacitor types, limiting their use in space-constrained designs.

What Are Electrolytic Capacitors?

Electrolytic capacitors are a type of capacitor that uses an electrolyte to achieve a larger capacitance compared to non-electrolytic capacitors, making them essential components in many electronic devices, including motherboards.

• Aluminum Electrolytic Capacitors: These are the most common type of electrolytic capacitors and are characterized by their aluminum oxide layer that serves as the dielectric. They are widely used in power supply circuits on motherboards, providing stable voltage and filtering out noise due to their high capacitance values, typically ranging from a few microfarads to several thousand microfarads.
• Tantalum Electrolytic Capacitors: Tantalum capacitors offer higher capacitance per volume and better reliability compared to aluminum electrolytic capacitors. They are often used in applications requiring stable performance over a wide range of temperatures, making them a good choice for critical circuits on motherboards where space is limited.
• Hybrid Capacitors: These capacitors combine features of both aluminum and tantalum capacitors, offering the benefits of lower equivalent series resistance (ESR) and improved stability. Hybrid capacitors are used in high-performance applications on motherboards, where efficiency and space-saving designs are crucial.
• Low-ESR Electrolytic Capacitors: Designed specifically for high-frequency applications, low-ESR capacitors minimize energy losses and heat generation. They are particularly beneficial in power regulation circuits on motherboards, ensuring efficient operation and longevity of the components.

What Are Ceramic Capacitors?

Ceramic capacitors are widely used electronic components known for their reliability and versatility, making them a popular choice for motherboards.

• Multi-Layer Ceramic Capacitors (MLCC): These capacitors consist of multiple layers of ceramic materials and electrodes, providing high capacitance in a small package.
• Class 1 and Class 2 Ceramic Capacitors: Class 1 capacitors offer stable capacitance over varying temperatures and voltages, while Class 2 capacitors can provide higher capacitance but have less stability.
• Temperature Coefficient: Ceramic capacitors have different temperature coefficients, such as X7R and C0G, which affect their performance in temperature variations.
• Voltage Ratings: The voltage rating of ceramic capacitors determines the maximum voltage they can handle without failing, making it crucial for motherboard applications.
• Size and Form Factor: Ceramic capacitors come in various sizes and package types, which allows for flexibility in design and layout on motherboards.

Multi-Layer Ceramic Capacitors (MLCC) are particularly favored for their ability to pack a lot of capacitance into a small footprint, which is essential for space-constrained applications like motherboards. Their low equivalent series resistance (ESR) also contributes to improved performance in filtering and decoupling applications.

Class 1 ceramic capacitors, such as C0G, provide excellent stability, making them ideal for timing and frequency applications. In contrast, Class 2 capacitors, like X7R, can handle larger capacitance values, but their capacitance can vary with temperature and applied voltage, which may not be suitable for all motherboard applications.

The temperature coefficient of ceramic capacitors influences their performance in different operating conditions. For instance, X7R capacitors can tolerate a wide temperature range, while C0G capacitors offer minimal variation, making them suitable for critical applications requiring precision.

Voltage ratings are vital because using a capacitor beyond its rated voltage can lead to failure, which could cause motherboard malfunctions. Selecting the appropriate voltage rating ensures reliability and longevity in electronic circuits.

Finally, the size and form factor of ceramic capacitors impact design choices on motherboards. Smaller capacitors can be placed densely, allowing for more components in a limited space, which is essential for modern high-performance motherboards that require efficient layout and thermal management.

What Are Tantalum Capacitors?

Tantalum capacitors are a specific type of electrolytic capacitor known for their high capacitance and reliability, making them popular in various electronic applications, including motherboards.

• High Capacitance: Tantalum capacitors can offer high capacitance values in a relatively small package, which is essential for compact electronic devices like motherboards that require a lot of power in limited space.
• Stability and Reliability: These capacitors exhibit excellent performance stability over a wide range of temperatures and frequencies, ensuring consistent operation in critical applications such as power supply filtering on motherboards.
• Low Equivalent Series Resistance (ESR): Tantalum capacitors have low ESR, which allows them to handle high ripple currents without overheating, making them ideal for decoupling power supply noise on motherboards.
• Voltage Rating: Tantalum capacitors come with various voltage ratings, which are essential to match the specific requirements of motherboard circuits, ensuring they can handle the necessary electrical stress without failure.
• Size and Form Factor: Available in various sizes, tantalum capacitors are often smaller than aluminum electrolytic capacitors with similar capacitance values, allowing for more efficient use of space on densely populated motherboard layouts.
• Cost Considerations: While tantalum capacitors tend to be more expensive than other types, their longevity and performance in high-stakes environments can justify the investment for premium motherboard designs.

What Factors Should You Consider When Choosing a Capacitor for a Motherboard?

When choosing the best capacitor for a motherboard, several critical factors should be considered to ensure optimal performance and longevity.

• Capacitance Value: The capacitance value, measured in microfarads (µF), determines how much charge the capacitor can store. Selecting the correct capacitance is essential as it must match the requirements of the motherboard circuit to maintain stability and performance during operation.
• Voltage Rating: The voltage rating indicates the maximum voltage the capacitor can handle before risking failure. It’s crucial to choose a capacitor with a voltage rating higher than the operating voltage of the motherboard to prevent breakdown and ensure reliability.
• ESR (Equivalent Series Resistance): ESR affects how efficiently a capacitor can deliver its stored energy. A lower ESR is preferable as it reduces heat generation and improves performance, especially in high-frequency applications typical in motherboards.
• Temperature Rating: Capacitors come with different temperature ratings, indicating the range in which they can operate safely. Selecting a capacitor with a suitable temperature rating ensures that it can withstand the heat generated by the motherboard components during prolonged use.
• Size and Form Factor: The physical dimensions and form factor of a capacitor are vital for compatibility with the motherboard’s layout. Ensure that the capacitor fits within the available space without interfering with other components.
• Lifespan and Reliability: Evaluating the lifespan and reliability, often indicated by the manufacturer’s specifications, helps determine how long the capacitor is expected to last under normal operating conditions. Choosing high-quality capacitors from reputable manufacturers can enhance the motherboard’s overall longevity.
• Type of Capacitor: There are various types of capacitors, such as electrolytic, ceramic, and tantalum, each having distinct properties. The choice of capacitor type affects performance, cost, and suitability for specific applications on the motherboard.

How Important Is the Capacitance Value?

The capacitance value is crucial when selecting the best capacitor for a motherboard, as it directly influences the performance and stability of the electronic components.

• Capacitance Rating: The capacitance rating is measured in Farads and indicates the amount of electrical charge a capacitor can store. A higher capacitance value allows the capacitor to hold more charge, which can improve power delivery and stability, particularly in high-performance applications where transient responses are critical.
• Voltage Rating: The voltage rating denotes the maximum voltage that a capacitor can withstand without failing. When choosing a capacitor for a motherboard, it’s important to select one with a voltage rating that exceeds the maximum voltage expected in the circuit to ensure reliability and longevity.
• Equivalent Series Resistance (ESR): ESR is a key parameter that affects the efficiency of the capacitor. Lower ESR values are preferable as they reduce energy loss and heat generation during operation, which is particularly important for motherboards that undergo heavy processing loads.
• Temperature Stability: Capacitors can vary in performance based on temperature fluctuations. Selecting capacitors with a stable performance across a wide temperature range helps ensure that the motherboard operates reliably under different environmental conditions.
• Form Factor: The physical size and shape of a capacitor, known as its form factor, determine its compatibility with the motherboard layout. Choosing the right form factor is essential to ensure that the capacitor fits properly and does not obstruct other components.
• Dielectric Material: The type of dielectric material used in a capacitor affects its performance characteristics, including leakage current and temperature coefficient. Common materials include ceramic, tantalum, and electrolytic, each with distinct advantages and disadvantages depending on the application and required specifications.

Why Is Voltage Rating Critical for Capacitors?

The voltage rating is critical for capacitors because it determines the maximum voltage the capacitor can withstand without breakdown, which is essential for ensuring reliability and longevity in electronic components like motherboards.

According to the Electronic Industries Alliance (EIA), a capacitor must have a voltage rating that exceeds the maximum voltage it will encounter in its application to prevent dielectric breakdown and failure (EIA-456-A). If a capacitor operates continuously at or above its voltage rating, it can lead to overheating, leakage, or even catastrophic failure, which is especially detrimental in sensitive electronic circuits.

The underlying mechanism involves the dielectric material used within the capacitor, which separates the conductive plates. This dielectric can only withstand a certain electric field before it begins to break down. Once the electric field exceeds the material’s limits, charge carriers can move through the dielectric, leading to a short circuit or a significant increase in leakage current. This breakdown not only renders the capacitor ineffective but can also damage surrounding components on a motherboard, highlighting the importance of selecting capacitors with appropriate voltage ratings for their intended use.

How Does Temperature Range Affect Capacitor Performance?

Temperature range significantly impacts the performance and reliability of capacitors used in motherboards.

• Capacitance Value: The capacitance of a capacitor can vary with temperature, often decreasing at higher temperatures. This is critical in motherboards where precise capacitance is required for stable operation.
• Equivalent Series Resistance (ESR): ESR tends to increase with temperature, which can lead to more power loss and heating in the capacitor. A higher ESR can reduce efficiency, making it essential to choose capacitors with low ESR for optimal motherboard performance.
• Lifetime and Reliability: Capacitors have a rated lifetime that is influenced by the operating temperature; generally, higher temperatures shorten the lifespan. For motherboards, selecting capacitors rated for higher temperatures can enhance overall reliability and performance longevity.
• Dielectric Breakdown: At extreme temperatures, capacitors risk dielectric breakdown, which can lead to failure. Ensuring that the capacitors used in motherboards can withstand the operational temperature range is vital to prevent catastrophic failures.
• Temperature Coefficient: Different capacitors have varying temperature coefficients, which measure how much their capacitance changes with temperature fluctuations. Choosing capacitors with stable temperature coefficients is important for maintaining consistent performance in motherboards across varying thermal environments.

Which Brands Are Recognized for Quality Motherboard Capacitors?

Several brands are renowned for producing high-quality capacitors for motherboards:

• Rubycon: Known for its long-lasting and reliable capacitors, Rubycon offers a variety of series that cater to different motherboard needs. Their capacitors often exhibit low ESR (Equivalent Series Resistance) values, which enhances performance and stability, particularly in high-load conditions.
• Nichicon: Nichicon capacitors are celebrated for their durability and excellent performance in power supply applications. They typically feature high ripple current ratings and low leakage current, making them ideal for motherboards that require consistent and efficient power delivery.
• Panasonic: Panasonic is a reputable brand in the electronics industry, and its capacitors are no exception. They provide a range of capacitors known for their high reliability and long life, especially in demanding environments, ensuring motherboard resilience against voltage fluctuations.
• Elna: Elna capacitors are favored for their superior audio performance, making them ideal for motherboards focused on premium sound quality. They are designed to minimize noise and distortion, which is particularly beneficial in high-fidelity audio applications.
• KZG: KZG capacitors are recognized for their excellent thermal stability and performance under load. These capacitors are often used in gaming and high-performance motherboards, where effective heat dissipation and reliability under high-stress conditions are crucial.

How Can You Identify Signs of a Failing Capacitor on a Motherboard?

Identifying signs of a failing capacitor on a motherboard can prevent further damage and ensure optimal performance.

• Physical Damage: Look for bulging, leaking, or burnt capacitors on the motherboard.
• System Instability: Frequent crashes, freezes, or unexpected restarts can indicate capacitor failure.
• Unusual Noises: Listen for hissing or popping sounds coming from the motherboard, which may signal capacitor issues.
• Overheating: If the motherboard or specific components are excessively hot, it may be due to failing capacitors struggling to handle current loads.
• Visual Inspection of Solder Joints: Examine solder joints around capacitors for cracks or cold solder joints, which can lead to poor electrical connections.

Physical damage is often the most apparent sign of capacitor failure. Capacitors should have a flat top; if they are bulging or leaking a brownish substance, they are likely defective and need replacement.

System instability can manifest through various symptoms, including random blue screens of death (BSOD), application crashes, or the system failing to boot properly. These issues may arise when capacitors cannot maintain stable voltage levels, leading to erratic behavior.

Unusual noises such as hissing or popping can occur when a capacitor is nearing failure, often due to internal pressure build-up or electrical discharge. Such sounds should not be ignored, as they can indicate imminent failure and potential damage to surrounding components.

Overheating is a critical warning sign; if the motherboard is running hotter than usual, it may be a result of capacitors that are unable to regulate voltage effectively. This can lead to system shutdowns or damage to other components if not addressed.

Visual inspection of solder joints is crucial as well. Cold solder joints or cracks can create intermittent connections, causing instability and potentially damaging the capacitors themselves. Ensuring solid connections can help prolong the life of the motherboard.

What Are the Steps to Replace or Repair Bad Capacitors on a Motherboard?

Replacing or repairing bad capacitors on a motherboard involves several key steps:

• Identify the Faulty Capacitors: Look for signs of damage such as bulging tops, leakage, or discoloration on the capacitors.
• Gather Necessary Tools: Assemble tools including a soldering iron, solder, desoldering pump, and replacement capacitors.
• Remove the Old Capacitors: Use the soldering iron to heat the solder joints and carefully remove the faulty capacitors.
• Prepare the Board: Clean the area on the motherboard where the old capacitors were located, ensuring that no solder or debris remains.
• Install New Capacitors: Insert the new capacitors into the correct orientation and solder them in place, ensuring a stable connection.
• Test the Motherboard: After replacing the capacitors, reconnect the motherboard and power it on to ensure that it functions correctly.

Identify the Faulty Capacitors: The first step in the process is to visually inspect the motherboard for any capacitors that show signs of failure. Common indicators include bulging or leaking tops, which suggest that the internal electrolyte is compromised, or discoloration that may indicate overheating.

Gather Necessary Tools: Before starting the repair, it’s essential to gather all the necessary tools. A soldering iron with a fine tip, solder wire, desoldering pump, and replacement capacitors that match the specifications of the originals are crucial for a successful repair.

Remove the Old Capacitors: Use the soldering iron to heat the solder on the joints of the faulty capacitors. Once the solder is melted, use a desoldering pump to remove the solder, and carefully pull out the old capacitors, ensuring not to damage the PCB pads.

Prepare the Board: After removing the old capacitors, inspect the pads on the motherboard for any damage. Clean the area with isopropyl alcohol to remove any residual solder or dirt, as this ensures a good connection for the new capacitors.

Install New Capacitors: Take the new capacitors, ensuring they are oriented correctly according to the polarity markings on the motherboard. Insert them into the holes and use the soldering iron to solder them securely in place, ensuring that no solder bridges are created between adjacent pads.

Test the Motherboard: Once the new capacitors are installed, reconnect the motherboard to the power supply and other components, then turn it on to check if it powers up properly. This step is crucial to confirm that the repair was successful and that the motherboard is functioning as intended.
