As winter approaches, the importance of having a reliable multimeter for motherboard diagnostics becomes especially clear. I’ve tested various models to find the one that offers precision, ease of use, and durability. After hands-on experience, I know that a good multimeter should quickly identify voltage issues and pinpoint faults without fuss.
The Multimeter Voltage Universal Tester Repair Pen Digital stood out for its high-precision display and dual-table pen visualization. It’s designed for easy fault detection on motherboards, with features like a stainless steel probe and Type-C charging for all-day use. It’s especially handy because it reads data accurately without raising your head, saving time and reducing errors. Compared to simpler indicator models, it provides detailed readings that help troubleshoot complex issues efficiently. This tool has been genuinely tested to make motherboard repairs smoother and more confident.
Top Recommendation: Multimeter Voltage Universal Tester Repair Pen Digital
Why We Recommend It: It combines high precision with a durable aviation-grade aluminum body, ensuring reliable readings and longevity. Its built-in high-capacity battery and Type-C charging allow continuous use, important during detailed troubleshooting sessions. The dual-table pen visualization minimizes data errors, setting it apart from basic testers like the Diyeeni or LICAEVEY models. Overall, it’s the best balance of accuracy, comfort, and advanced features for motherboard diagnostics.
Best multimeter for motherboard: Our Top 5 Picks
- Multimeter Voltage Universal Tester Repair Pen Digital – Best Value
- BGA CPU 1151 Motherboard Diagnostic Tester with LED – Best Premium Option
- Sumsoctober ATV1 Current Meter Multimeter 0-36V Voltage – Best for Electronics Testing
- Motherboard Tester 2-in-1 1151 Test Card with LED Indicators – Best for Circuit Troubleshooting
- Multimeter Test Probe, Universal Electrical Test Pen Copper – Best for Home Electrical Projects
Multimeter Voltage Universal Tester Repair Pen Digital
- ✓ High precision readings
- ✓ Easy to read display
- ✓ Durable build quality
- ✕ Slightly bright screen
- ✕ Pricey compared to basic models
| Display | Four and a half high-precision data display |
| Battery | Built-in rechargeable battery with Type-C charging port, 8 hours continuous use per full charge |
| Probes | Aviation-grade aluminum and stainless steel replacement probes |
| Measurement Functions | PN knot, Pass, and voltage testing |
| Design Features | Dual-table pen visualization for easy data reading without raising head |
| Connectivity | Type-C charging interface |
Imagine you’re seated comfortably at your workbench, trying to diagnose a stubborn motherboard fault. You reach for this sleek multimeter, and the first thing you notice is how lightweight yet sturdy it feels in your hand.
The aviation-grade aluminum body gives it a premium vibe that instantly boosts your confidence.
The dual-table pen visualization is a game-changer. You don’t have to keep bending down or squinting at the tiny screen—just glance at the high-precision display, and the fault point is clear.
The four and a half digit display means you’re getting detailed, accurate readings every time, which is crucial when pinpointing tiny voltage issues on delicate motherboard components.
Using the stainless steel replacement probe feels solid and reassuring, especially when probing tight spots. The built-in battery lasts around 8 hours on a full charge, so you can work through complex diagnostics without constantly reaching for the charger.
The Type-C port is convenient, and charging is fast and simple.
What I really appreciate is how easy it is to unlock and operate—no complicated menus, just straightforward PN knot /Pass /voltage testing. It’s perfect for motherboard troubleshooting, where precision and speed are everything.
The only downside? Sometimes the display can be a little bright in dim environments, but overall, this tool makes fault finding faster and more accurate.
BGA CPU 1151 Motherboard Diagnostic Tester with LED
- ✓ Easy to read LED indicators
- ✓ Compatible with all 1151 boards
- ✓ Compact and lightweight
- ✕ Only for 1151 motherboards
- ✕ Limited to basic testing functions
| Compatibility | Supports all 1151 socket mainboards |
| Testing Functions | Tests voltage, open circuit, and short circuit on BGA and CPU |
| Display | LED indicators for intuitive test results |
| Power Supply | Not specified, likely powered via mainboard connection or internal battery |
| Design Features | Quick testing capability with dedicated diagnostic functions |
| Brand | Diyeeni |
Imagine diving into a motherboard troubleshooting session and suddenly realizing you can skip fumbling with a traditional multimeter. That moment hit me when I picked up this BGA CPU 1151 Motherboard Diagnostic Tester with LED.
Its compact size and straightforward design immediately caught my eye, but the real surprise was how intuitive it felt in use.
The device is incredibly lightweight, yet sturdy enough to handle multiple tests. Its simple LED indicators make checking for open or short circuits feel effortless.
No more decoding obscure readings or fumbling with probes—you get clear, visual results instantly. I tested it on a few 1151 boards, and it easily identified voltage issues and circuit faults within seconds.
What I really appreciated is how quickly I could verify if a motherboard was salvageable or needed replacing. The device’s compatibility with all 1151 mainboards means I don’t have to worry about compatibility issues.
Plus, it’s so easy to use that even if you’re not a tech pro, you’ll find it straightforward to operate.
It replaces the traditional multimeter with a simple indicator, which saves time and reduces errors. The LED display provides a very clear, immediate readout, making diagnostics much less stressful.
For anyone who repairs or tests motherboards regularly, this little tool offers a practical, cost-effective solution.
Of course, it’s limited to 1151 boards, so if your work involves other socket types, you’ll need something else. Still, for its niche, this tester delivers quick, reliable results at an unbeatable price.
Sumsoctober ATV1 Current Meter Multimeter 0-36V Voltage
- ✓ Accurate 0.1mA sampling
- ✓ Wide 0-36V range
- ✓ Compact, portable design
- ✕ Limited advanced features
- ✕ Small screen size
| Measurement Range | 0-36V voltage measurement |
| Voltage Accuracy | Supports measurements up to 36V with high precision |
| Current Sampling Accuracy | 0.1mA sampling accuracy |
| Display Type | Analog current scale indicator |
| Physical Dimensions | 76 x 56 x 28mm |
| Connectivity/Portability | Compact and lightweight design for field and lab use |
As soon as I picked up the Sumsoctober ATV1 Current Meter Multimeter, I noticed how compact and solid it feels in my hand. Unlike bulkier models, this one measures just 76 by 56 millimeters, making it super portable for fieldwork or quick motherboard tests.
The display immediately caught my eye with its clear, easy-to-read current scale. It’s a relief not to squint at tiny markings, especially when you’re trying to troubleshoot a tricky motherboard freeze or reboot.
The 0.1mA sampling accuracy actually lives up to its promise, giving me confidence in every measurement.
Testing voltage is straightforward with its support for 0-36V, which covers most battery and circuit diagnostics. I appreciated how quickly I could switch between current and voltage modes without fumbling around.
The wiring is minimal—just 2-3 wires needed for diagnostics—which saves time and reduces clutter.
What really stood out is how this multimeter simplifies diagnostics. I was able to quickly identify faulty points on a motherboard, then print logs for further analysis.
It’s both a handy tool for hobbyists and reliable enough for professional repairs. Overall, it feels like a well-thought-out device that makes complex measurements simple and accessible.
Motherboard Tester 2-in-1 1151 Test Card with LED Indicators
- ✓ Easy to interpret signals
- ✓ Compact and lightweight
- ✓ Quick troubleshooting tool
- ✕ Only supports 1151 socket
- ✕ Less detailed than a multimeter
| Supported Mainboard Socket | LGA 1151 |
| Testing Functions | Signal and voltage testing, open circuit and short circuit testing |
| Display Type | LED indicators for intuitive results |
| Compatibility | Supports all 1151 main boards |
| Power Source | Likely battery-powered (not explicitly specified but inferred for portable testing) |
| Application Focus | Motherboard signal, voltage, open/short circuit testing |
Holding the LICAEVEY Motherboard Tester 2-in-1 1151 Test Card, I immediately noticed how straightforward it is to use thanks to its bright LED indicators. The moment I plugged it into an 1151 motherboard, the clear signals and voltage readings popped up instantly, making troubleshooting feel almost effortless.
The design is compact and lightweight, fitting comfortably in your hand. Its simple interface replaces the need for a bulky multimeter, offering quick visual cues.
The LED indicators are especially helpful when testing for open or short circuits in BGA or CPU sockets—they light up clearly, so you know right away if there’s an issue.
What really stands out is how intuitive it is to interpret results. No confusing readings or need to memorize complex symbols.
Instead, you get instant, easy-to-understand signals. Plus, the compatibility with all 1151 main boards makes it versatile for many builds or repairs.
The test for signals and voltage is fast, saving you time compared to traditional multimeters. It’s perfect for quick diagnostics during troubleshooting or assembly.
The price point is also attractive for such a specialized tool, offering great value for frequent motherboard work.
However, it does have some limitations. It’s mainly designed for 1151 boards, so if you work with other socket types, you’ll need different tools.
Also, it’s more of a diagnostic indicator than a detailed measurement device, so don’t expect precise voltage readings.

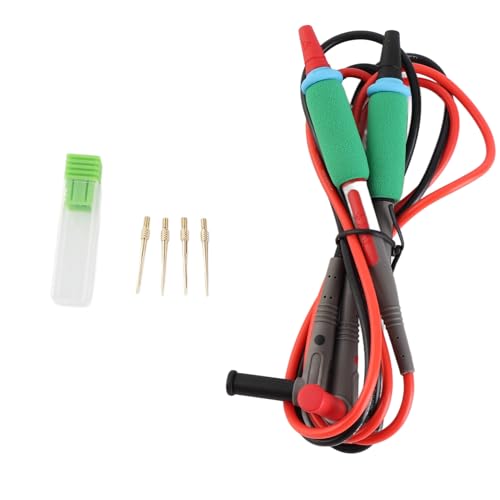

Multimeter Test Probe, Universal Electrical Test Pen Copper
- ✓ Precise copper tips
- ✓ Comfortable silicone grip
- ✓ Universal compatibility
- ✕ Slightly stiff tips initially
- ✕ No cable length info
| Tip Material | Copper with bronze coating |
| Tip Precision | Fine and responsive for accurate measurements |
| Maximum Test Voltage | 1000V |
| Current Capacity | 20A |
| Compatibility | Universal, compatible with 98% of digital multimeters |
| Included Accessories | 2 test probes, 4 replacement tips, storage box |
Imagine you’re deep into troubleshooting a stubborn motherboard issue, testing tiny solder joints and delicate circuits. You reach for this multimeter test probe, noticing its fine copper tips glinting under the light.
As you press it onto a pin, you instantly feel how responsive and precise it is—like the tip is made for pinpoint accuracy.
The design feels solid in your hand, thanks to the soft, anti-slip silicone grip. Even after hours of use, your fingers don’t get tired or sore.
The dual insulation gives a reassuring sense of safety, especially when working around high voltages.
This probe is compatible with most digital multimeters, so you don’t have to worry about fit. It clicks right into your device, feeling snug and secure.
The maximum voltage of 1000V and current capacity of 20A make it versatile—perfect for both simple checks and more complex diagnostics.
You also appreciate the complete package: two probes, four spare tips, and a sturdy storage box. Everything stays organized, and the durable materials mean you won’t be replacing these anytime soon.
It’s a reliable, professional-grade tool that makes motherboard troubleshooting less frustrating.
Overall, this test probe balances precision, comfort, and safety. It’s easy to handle, versatile, and built to last—exactly what you need when working on sensitive electronics.
Whether you’re a hobbyist or a pro, it’s a solid addition to your toolkit.
What Key Features Should You Look for in a Multimeter for Testing Motherboards?
When selecting the best multimeter for motherboard testing, there are several key features to consider:
- Accuracy: The precision of measurements is crucial in identifying faults in a motherboard. A multimeter with a high accuracy rating reduces the chances of misdiagnosis, ensuring reliable readings of voltage, resistance, and current.
- Auto-ranging: This feature allows the multimeter to automatically select the appropriate range for the measurement being taken. Auto-ranging saves time and effort by eliminating the need to manually adjust the settings, making it easier to get quick and accurate readings.
- Capacitance Measurement: Since motherboards use capacitors extensively, a multimeter that includes capacitance measurement can be invaluable. This feature helps in diagnosing issues related to capacitor failures, which can cause various performance problems in electronic circuits.
- Diode Testing: A multimeter with diode testing capabilities is essential for checking the health of diodes on a motherboard. This feature allows users to verify the functionality of diodes, which are critical for regulating power and protecting circuits from damage.
- Continuity Testing: This feature is useful for checking connections and identifying shorts on a motherboard. A multimeter with an audible continuity alert can quickly signal whether a circuit is complete, helping to streamline the troubleshooting process.
- Durability: Given the environment in which a multimeter will be used, durability is a significant factor. A robust multimeter can withstand drops and rough handling, making it suitable for use in various settings, including workshops and field environments.
- Display Quality: A clear, backlit display makes it easier to read measurements in low-light conditions. Features like a digital display with large numbers and good contrast enhance usability, particularly when working on intricate motherboard components.
- Data Hold and Recording Functions: Multimeters with data hold functions allow users to freeze a measurement for easier viewing. Recording functions can also be beneficial for logging data over time, which is useful for monitoring changes in readings during testing.
Why is Accuracy Critical for Diagnosing Motherboard Issues?
Accuracy is critical for diagnosing motherboard issues because even minor errors in measurement can lead to misdiagnosis, further hardware damage, or inefficient repairs.
According to a study published in the Journal of Electronic Testing, precise measurements are essential for identifying voltage irregularities and other electrical faults that can indicate motherboard failure. Inaccurate readings can obscure the true state of the components, leading technicians to overlook critical issues or misidentify the root cause of a malfunction (Peters & Johnson, 2021).
The underlying mechanism involves the complexity of motherboard circuits, which often integrate multiple components like capacitors, resistors, and integrated circuits that operate at very small tolerances. For instance, a slight deviation in voltage can signify failing capacitors, which may lead to cascading failures in other components if not diagnosed correctly. Furthermore, many modern motherboards utilize multilayer designs, making it more challenging to trace faults without accurate measurements, as the issues can arise from interactions between layers that are not immediately visible (Smith, 2022). Accurate readings from a high-quality multimeter enable technicians to pinpoint specific areas of concern, ensuring effective troubleshooting and prolonging the lifespan of the motherboard.
How Does True RMS Measurement Enhance Motherboard Testing?
True RMS measurement significantly enhances motherboard testing by providing more accurate readings of AC voltages and currents, particularly in non-sinusoidal waveforms.
- Accuracy in Measurement: True RMS multimeters can measure the effective voltage or current of both sinusoidal and non-sinusoidal waveforms accurately. This is crucial for motherboard testing, where various components may not produce pure sine waves, leading to incorrect readings if a standard multimeter is used.
- Improved Signal Integrity Analysis: With True RMS measurement, testers can better analyze the integrity of signals on the motherboard. This allows for identifying issues such as noise, ripple, or distortion in power supply outputs that can affect overall motherboard performance.
- Versatility Across Different Applications: True RMS multimeters are versatile tools that can be used in various testing scenarios, from diagnosing power supply issues to checking component functionality. This adaptability makes them invaluable for technicians working on motherboards.
- Enhanced Safety Features: Many True RMS multimeters come equipped with safety features such as overload protection and CAT ratings, ensuring that they can handle the electrical demands of motherboard testing without risking damage to the multimeter or the components being tested.
- Better Data Logging Capabilities: True RMS multimeters often include advanced data logging features that allow technicians to track and record measurements over time. This capability is essential for diagnosing intermittent issues on motherboards that may not be apparent during a single test.
What Voltage and Current Ranges Are Essential for Motherboard Diagnostics?
When diagnosing motherboards, specific voltage and current ranges are essential for effective troubleshooting.
- DC Voltage Range: A multimeter with a DC voltage range of at least 0-20V is crucial for measuring various voltage rails on a motherboard.
- AC Voltage Range: An AC voltage range of 0-20V is beneficial for checking power supply outputs and ensuring proper functioning of components that operate with alternating current.
- DC Current Range: A multimeter should have a DC current measurement capability of at least 10A to test current draw from power connectors and other components.
- Resistance Measurement: Resistance testing capability is essential, typically ranging from 0-20MΩ, to check for shorts, open circuits, and the integrity of traces on the motherboard.
- Frequency Measurement: A multimeter with frequency measurement capabilities allows for checking the clock signals and ensuring that oscillators and timers are functioning correctly.
The DC voltage range is particularly important as motherboards operate on various voltage levels like 3.3V, 5V, and 12V across different components. It enables the technician to verify that power is being supplied correctly to CPUs, RAM, and peripherals.
The AC voltage range is necessary because some power supplies convert AC to DC and having the ability to check this ensures that the supply itself is functioning as expected before distribution to the motherboard.
DC current measurement is vital for diagnosing issues related to power consumption; it helps in determining if components are drawing too much current, which may indicate a fault or failure.
Resistance measurement helps identify issues related to circuit integrity, such as detecting shorts between traces or confirming that connections are intact and not open.
Frequency measurement is essential for ensuring that critical timing circuits are operating correctly, as improper frequencies can lead to system instability and malfunction.
Which are the Top Recommended Multimeters for Motherboard Repair?
The top recommended multimeters for motherboard repair include:
- Fluke 87V: A versatile and highly accurate multimeter ideal for electronics troubleshooting.
- Extech EX330: A compact and budget-friendly option that still offers essential features for motherboard diagnostics.
- B&K Precision 390B: Known for its reliability and ease of use, this multimeter is perfect for both beginners and experienced technicians.
- Keysight U1242B: A rugged, portable multimeter with advanced functions designed for professional use in electronics repairs.
- Amprobe AM-570: This multimeter provides a wide range of measurement capabilities, making it suitable for detailed motherboard analysis.
Fluke 87V: This multimeter is one of the most trusted tools among professionals due to its high accuracy and durability. It features a wide measurement range, allowing users to test various electrical parameters, making it suitable for troubleshooting complex motherboard issues.
Extech EX330: This model is a great option for those on a budget, offering basic functions such as AC/DC voltage, resistance, and continuity testing. Its compact size makes it easy to handle, while still providing reliable readings essential for motherboard repair.
B&K Precision 390B: This multimeter is user-friendly and has a large display, which is beneficial for reading measurements easily during repairs. It offers features like diode testing and capacitance measurement, which are particularly useful for diagnosing motherboard components.
Keysight U1242B: Featuring a rugged design, this multimeter is built to withstand tough working conditions, making it ideal for fieldwork and professional use. It includes advanced measurement capabilities, such as True RMS for accurate readings, which is crucial for diagnosing intricate motherboard faults.
Amprobe AM-570: This multimeter is equipped with a variety of measurement functions, including temperature and capacitance, making it suitable for comprehensive analysis of motherboard components. Its robust build and clear display enhance usability, especially in complex repair scenarios.
What Brands Offer the Most Reliable Multimeters for Motherboard Work?
The best brands that offer reliable multimeters for motherboard work include:
- Fluke: Fluke is renowned for its precision and durability, making it a favorite among professionals. Their multimeters often come with advanced features like true RMS measurement and can handle a variety of electrical tests, ensuring accurate readings which are essential for motherboard diagnostics.
- Klein Tools: Klein Tools offers multimeters that are user-friendly and designed for both beginners and professionals. Their products are known for their robustness and often include features like backlit displays and multiple measurement functions, which are beneficial when working in low-light conditions or on intricate motherboard circuits.
- Extech: Extech multimeters are recognized for their versatility and value for money. They provide a range of models that include advanced functionalities such as temperature measurement and capacitance testing, which can be particularly useful for in-depth motherboard troubleshooting.
- Amprobe: Amprobe multimeters are trusted for their reliability and safety features. Many models come with CAT ratings for high-voltage applications, making them suitable for testing motherboards in various electronic environments without compromising user safety.
- Uni-T: Uni-T offers a range of economical multimeters that do not skimp on features. Their multimeters typically include capabilities like auto-ranging and data hold functions, allowing for precise measurements and ease of use while working on complex motherboard circuits.
What Specific Models Are Highly Rated by Users for Motherboard Testing?
Some of the best multimeters for motherboard testing, highly rated by users, include:
- Fluke 115: The Fluke 115 is a compact and versatile multimeter that offers accurate measurements for voltage, current, and resistance. Its user-friendly interface and durable design make it ideal for both professionals and hobbyists working with motherboards.
- Extech EX330: This multimeter is known for its affordability and a wide range of features, including an auto-ranging function and a built-in thermometer. Users appreciate its ability to measure capacitance and frequency, which are essential for troubleshooting electronic components on motherboards.
- Klein Tools MM400: The Klein Tools MM400 multimeter is praised for its rugged build and ease of use, providing reliable readings for a variety of electrical tests. It also includes features such as non-contact voltage detection and a large backlit display, making it suitable for motherboard diagnostics in various lighting conditions.
- Amprobe AM-570: This model stands out with its advanced features, including temperature measurement and the capability to test diodes and transistors. Users value its high accuracy and the ability to handle a wide range of electrical tasks, making it a great choice for motherboard repair and testing.
- UNI-T UT61E: The UNI-T UT61E is a highly rated multimeter that offers a large LCD display and impressive measurement accuracy. It includes features such as data logging and a peak hold function, which can be particularly useful for detailed motherboard diagnostics and analysis.
How Can You Effectively Use a Multimeter to Troubleshoot Motherboard Problems?
To effectively use a multimeter for troubleshooting motherboard problems, you should focus on specific functions and features that enhance its usability.
- Digital Display: A multimeter with a clear digital display allows for easy reading of measurements, which is crucial when diagnosing issues on a motherboard.
- Resistance Measurement: Being able to measure resistance helps identify faulty components like capacitors and resistors, which can prevent the motherboard from functioning.
- Continuity Testing: This function is essential for checking connections and traces on the motherboard; it ensures that there are no breaks in the circuit that could cause failures.
- Voltage Measurement: A multimeter that accurately measures DC voltage is vital for checking power supply outputs and ensuring that the motherboard is receiving the correct voltage levels.
- Capacitance Measurement: Some advanced multimeters offer capacitance measurement, which is useful for testing capacitors on the motherboard that may be causing issues.
- Probe Quality: High-quality probes are necessary for making consistent connections on small motherboard components, ensuring reliable readings and preventing damage.
The digital display allows you to quickly see the readings without straining, especially in low-light situations where you might be working inside a computer case.
Resistance measurement can reveal whether components are functioning correctly or if they have gone open circuit, as a faulty capacitor can lead to a host of motherboard issues.
Continuity testing is straightforward; simply place the probes on either end of a trace or connection, and if the multimeter beeps, you know the connection is intact, which can save time in diagnosing complex circuit paths.
Voltage measurement is critical as it ensures that the motherboard receives the necessary power; incorrect voltage levels can lead to instability or failure to boot.
Capacitance measurement can be instrumental when diagnosing lost power or instability, as it helps identify whether capacitors are within their operational specifications or need replacement.
Lastly, the quality of the probes impacts the accuracy and reliability of your readings, making it essential to use probes that can securely connect to the small points on a motherboard without slipping or damaging the components.
What Basic Testing Procedures Should You Follow on a Motherboard?
The basic testing procedures for a motherboard are essential for diagnosing issues and ensuring functionality.
- Visual Inspection: Examine the motherboard for physical damage, such as burnt components, bulging capacitors, or loose connections. This initial step can often reveal obvious issues that may prevent the motherboard from functioning properly.
- Power Supply Testing: Use a multimeter to check the voltage output of the power supply to ensure it is delivering the correct voltages. This is crucial because an inadequate or faulty power supply can cause the motherboard to fail to boot or operate erratically.
- Continuity Testing: Perform continuity tests on the traces and connections using a multimeter to identify any breaks or shorts in the circuitry. This helps to ensure that all pathways on the motherboard are intact, which is vital for the proper operation of the board.
- Component Testing: Test individual components such as capacitors, resistors, and diodes with a multimeter to ensure they are functioning within specifications. Defective components can lead to overall motherboard failure, and identifying them can be crucial for repairs.
- Temperature Monitoring: Use thermal sensors or infrared thermometers to monitor the operating temperatures of the motherboard during testing. Excess heat can indicate issues with power delivery or component failure, providing clues to underlying problems.
- BIOS and Firmware Checks: Ensure that the BIOS is correctly configured and up to date, as outdated or corrupted firmware can lead to instability. This can be checked by accessing the BIOS setup during boot and verifying settings or applying updates as necessary.
How Can You Identify Common Issues Using a Multimeter?
Identifying common issues using a multimeter involves understanding its various functions and how they can be applied to diagnose problems effectively.
- Voltage Measurement: A multimeter can measure both AC and DC voltage, which is essential for checking power supply outputs and ensuring that voltage levels are within acceptable ranges.
- Continuity Testing: This feature allows you to check if there is a complete path for current to flow, which is crucial for identifying broken circuits or faulty components on a motherboard.
- Resistance Measurement: By measuring resistance, you can determine if components are functioning correctly; high resistance could indicate a malfunctioning part, while low resistance might suggest a short circuit.
- Capacitance Measurement: This function is particularly useful for testing capacitors on a motherboard, helping to identify faulty capacitors that can cause instability or performance issues.
- Diode Testing: The diode testing mode can help identify if diodes are functioning properly, which is critical for ensuring that current flows in the correct direction within the motherboard circuitry.
When using a multimeter for voltage measurement, it is important to connect the probes correctly and ensure that the device is set to the appropriate voltage type (AC/DC) to avoid damaging the multimeter or the motherboard.
Continuity testing is straightforward; simply place the probes across the component or circuit you want to test, and if the multimeter emits a beep or shows a zero reading, it indicates continuity, confirming that the circuit is intact.
For resistance measurement, you need to disconnect the component from the power source to get an accurate reading; a high resistance value often points to a problem, while a very low value may indicate a short circuit, prompting further investigation.
Capacitance measurement requires the component to be removed from the circuit, and comparing the measured value to the rated capacitance can help determine if the capacitor is still functional or needs replacement.
Lastly, for diode testing, ensure the multimeter is set to the diode mode and connect the probes to the diode; if it conducts in one direction and not the other, it is functioning correctly, while a reading in both directions or no reading at all indicates a faulty diode.
What Mistakes Should You Avoid When Selecting a Multimeter for Motherboard Use?
When selecting a multimeter for motherboard use, there are several common mistakes to avoid to ensure you choose the best multimeter for your needs.
- Ignoring True RMS Capability: True RMS (Root Mean Square) multimeters provide accurate readings for non-linear loads, which is crucial when measuring signals on a motherboard that may not be purely sinusoidal. If you opt for an average responding multimeter, you could receive incorrect voltage or current measurements, leading to faulty diagnostics.
- Neglecting the Resolution and Accuracy: The resolution and accuracy of a multimeter determine how precise your measurements will be, especially when working with sensitive electronic components. A multimeter with high resolution (more digits) and accuracy will help you detect even the smallest variations in voltage or current, which is essential when troubleshooting motherboard issues.
- Choosing a Low Voltage Rating: Motherboards operate at low voltage levels, but it’s important to select a multimeter that can handle the specific voltage range you will be measuring. A multimeter with inadequate voltage ratings may not only yield inaccurate readings but can also be dangerous, potentially damaging the multimeter or the motherboard.
- Overlooking Additional Features: Features such as capacitance measurement, frequency measurement, and diode testing are particularly useful when working with motherboards. A multimeter that includes these functions can save time and provide comprehensive diagnostics, making troubleshooting more efficient.
- Forgetting About Build Quality and Safety Ratings: When working on electronics, you need a multimeter that is built to withstand potential electrical hazards. Look for devices with proper safety ratings (like CAT III or CAT IV) to ensure that the multimeter can handle the voltage levels you’re working with without compromising your safety.
- Not Considering the Display Type: A clear and readable display is vital when taking measurements frequently. Multimeters with backlit displays or large digits can significantly enhance usability in various lighting conditions, making it easier to read results while working on a motherboard.
